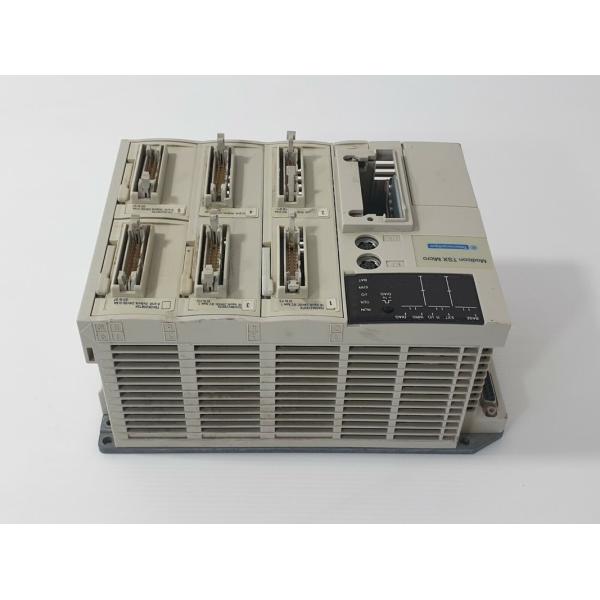

TSX3722101 Schneider Redundant Power Supply Module Electric PLC Controller TSX Micro 37 21/22 Modular Base
Specifications OF Redundant Power Supply Module
Part Number TSX3722101
Manufacturer Schneider Electric
Series Modicon Micro
Model # TSX3722101
Alternate Model TSX-372-210-1
Type PLC
Warranty 2 Year
Electromagnetic compatibility Electrostatic discharge IEC 1000-4-2 level 3
Electromagnetic field immunity test IEC 1000-4-3 level 3
Resistance to fast transient IEC 1000-4-4 level 3
Immunity to impulse waves IEC 1000-4-5
Damped oscillatory wave IEC 1000-4-12
Immunity to electromagnetic interference IEC 61131-2
Range of product Modicon TSX Micro automation platform
Product or component type Modular base controller
Primary voltage 24 V 19.2...30 V DC
Input current 2 mA < 60 A
Immunity to microbreaks < 10 ms
Number of slots 3
Analogue input type 0...10 V 8
Analogue output type 0...10 V 1
Counting input type Discrete incremental counter 1 10 Hz
Incremental 1 10 Hz
Integrated connection type 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s
Realtime clock With
Memory description Internal RAM 20 Kwords data
Internal RAM (with PCMCIA card) 128 Kwords program and data
Internal RAM 128 Kwords data storage
Flash 15 Kwords data
Maximum size of object areas 256 %Mi
1 %MWi internal words
128 %KWi constant words
Execution time for 1 K instruction 5.88 100 % Boolean without PCMCIA card
4 100 % Boolean with PCMCIA card
0.266 65 % Boolean and 35 % numerical with PCMCIA card
Application structure 1 fast task
1 master task
16 event tasks
System overhead 2.3 ms master task
Protection type Overload protection
Short-circuit
Total useful secondary power 16 W
